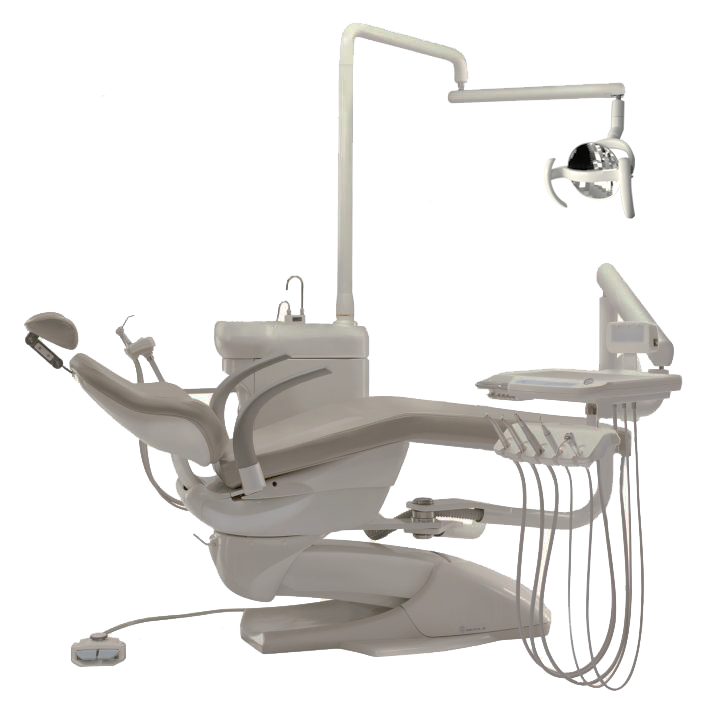

Leader
The advanced equipment not only enables doctors to solve patients' problems with ease, but also allows patients to receive treatment in such an environment with confidence due to its elegant appearance and considerate design.
In addition, you can choose an integrated solution to install other equipment such as intraoral speculum to show the meticulous and comprehensive design of extraordinary performance.Leader can meet your needs to show the best efficiency and value.
Product number
A
B
Surgery unit:
The air-assisted brake system arm provides flexible and efficient comprehensive precision super-operation for doctors. The one-piece handpiece hanger is easy to clean and avoid cross-infection.

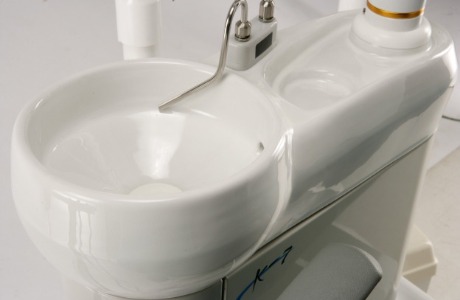

Spittoon:
The first nano-technology spittoon, TiO₂ (titanium dioxide) absorbs ultraviolet rays in sunlight or ultraviolet light in lighting lamps, and the photocatalyst oxidation produced can effectively remove germs, inhibit the spread of pathogens, eliminate odors, and achieve self-cleaning effects . At the same time, it can also do 90-degree movement, which is convenient for personnel to assist in treatment.

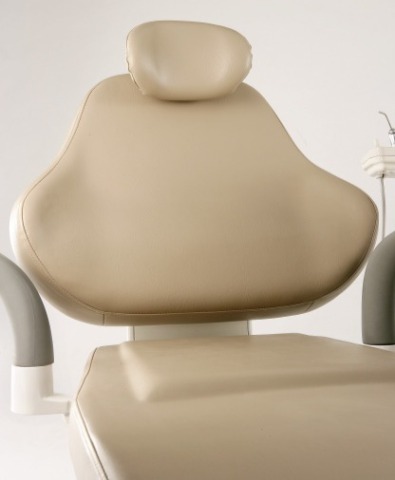

Headrest, chair back design:
The dual-axis headrest design can be adjusted according to different treatment angles and different patients' needs. The ergonomic chair back design makes the user more comfortable and at ease, and the seat can be rotated left and right for convenient operation and more flexibility.
When the bottom of the seat touches an obstacle during the descent, the movement will automatically rise and stop slightly to meet the safety requirements during treatment.
The seat reset system conforms to ergonomics. When adjusting backwards, the entire seat is move synchronously to achieve comfortable adjustments. The specially designed back of the chair rationalizes your working style and becomes a correct and comfortable operating posture.
| Technical Parameters | ||
| seat width | 530mm | |
| seat length | 1230mm | |
| Highest chair lift | 630mm | |
| Lowest chair position | 480mm | |
| Maximum width of backrest | 790mm | |
| Maximum length of backrest | 480mm | |
| backrest upright angle | 80° | |
| The most inclined angle of the backrest level | 15° | |
| Weight | 210㎏ | |
| Power Voltage | AC:110V | AC:220V |
| 50/60 HZ | 50/60 HZ | |
| power consumption | 7A | 5A |
| Air Consumption of High Speed Handpiece | 28 litre/mm (2.2㎏/ c㎡) | |
| Slow Handpiece air consumption | 45 litre/mm (4㎏/c㎡) | |
| Air consumption of saliva aspirator | 45 litre/mm (4㎏/c㎡) | |
| Configuration |
| LED light multi-step adjustable light source |
| Multifunctional foot pedal controller can fine-tune the chair position |
| Cantilever, air-assisted braking system |
| Chair down safety switch |
| Quick released nozzle 3-way syringe*2 |
| Electronic X-ray film viewing lamp |
| Air flow strong suction system |
| Water flow weak suction system |
| One-piece nano antibacterial ceramic spittoon |
| Dual-axis design headrest |
| The chair position can be rotated left and right |
| Infrared sensor automatic water supply system |
| Assistant control panel |
| Switch between two water sources |
| Features |
|
1.The new LED lights can be adjusted to various angles
|
| * New LED lights, inductive multi-step adjustment of light source |
| * Switching between two new LED light sources (sunlight 5300K, yellow light 4300K) |
|
2.The surface of the one-piece ceramic spittoon is bright and smooth, and the design without dead ends can inhibit bacteria and deodorize, and it can be multi-angled to facilitate patients to gargle
|
|
3.Press panel design, easy to operate. All functions at a glance
|
|
4.Three sets of computer memory chair position design, easy to operate
|
|
5. Seat down safety switch
|
|
6.The chair will stop immediately once touching any chair button while the chair is moving,
|
|
7. Infrared sensor water feeder does not have the trouble of traditional weight control
|
|
8.One-piece handppiece hanger with 6 possitions, easy to clean, allowing doctors to operate freely
|
|
9. The tightness of the movable arm of the shadowless lamp can be easily adjusted
|
|
10. The multifunctional foot pedal can fine-tune the chair position and has 2 sets of buttons. "O" mouthwash position and "S" memorize last patient chair position
|
|
11. Cantilever, air-assisted braking system
|
|
12. When the handpiece is switch on, the seat will power-off automaticcally to avoid accidentally touching the seat button
|
|
13. Assistants can help treat patients through the operation panel
|
|
14.The chair seat can be rotated 30° left and right, which is beneficial for doctors to use the space during diagnosis and treatment
|
|
15. Air flow strong suction system and water flow weak suction system
|
|
16. The seat adopts a synchronous design, and has the function of an elevation angle of 15° to increase the comfort of the patient
|
|
17. The light will automatically turn on when the chair back is in the treatment position, and the light will go out when the chair back is in the gorgle position
|
|
18. The spittoon can be rotated 90 degrees, allowing patients to spit easily
|
